Knowledge Check: Air Leakage and Heat Flow

LISTEN...

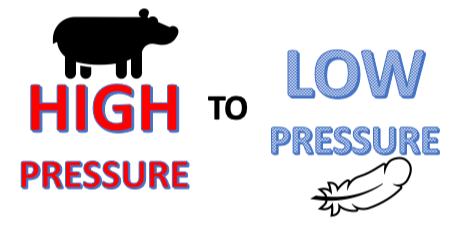

Just as heat always flows from hot to cold, air flows from high (positive) pressure areas to a low (negative) pressure areas.

For air flow to occur, there must be:

  • A pressure difference between two points
  • A path or opening connecting the points.

Significant heat loss in a building may be the result of air leakage. This may show up in one or more of the following ways:

  • Poorly sealed installation around windows and doors.
  • Cracks and holes at utility penetrations, electrical outlets, and vent openings.
  • Poorly sealed attic hatch openings.
  • Cracks at framing junctions and plane changes in the building structure.

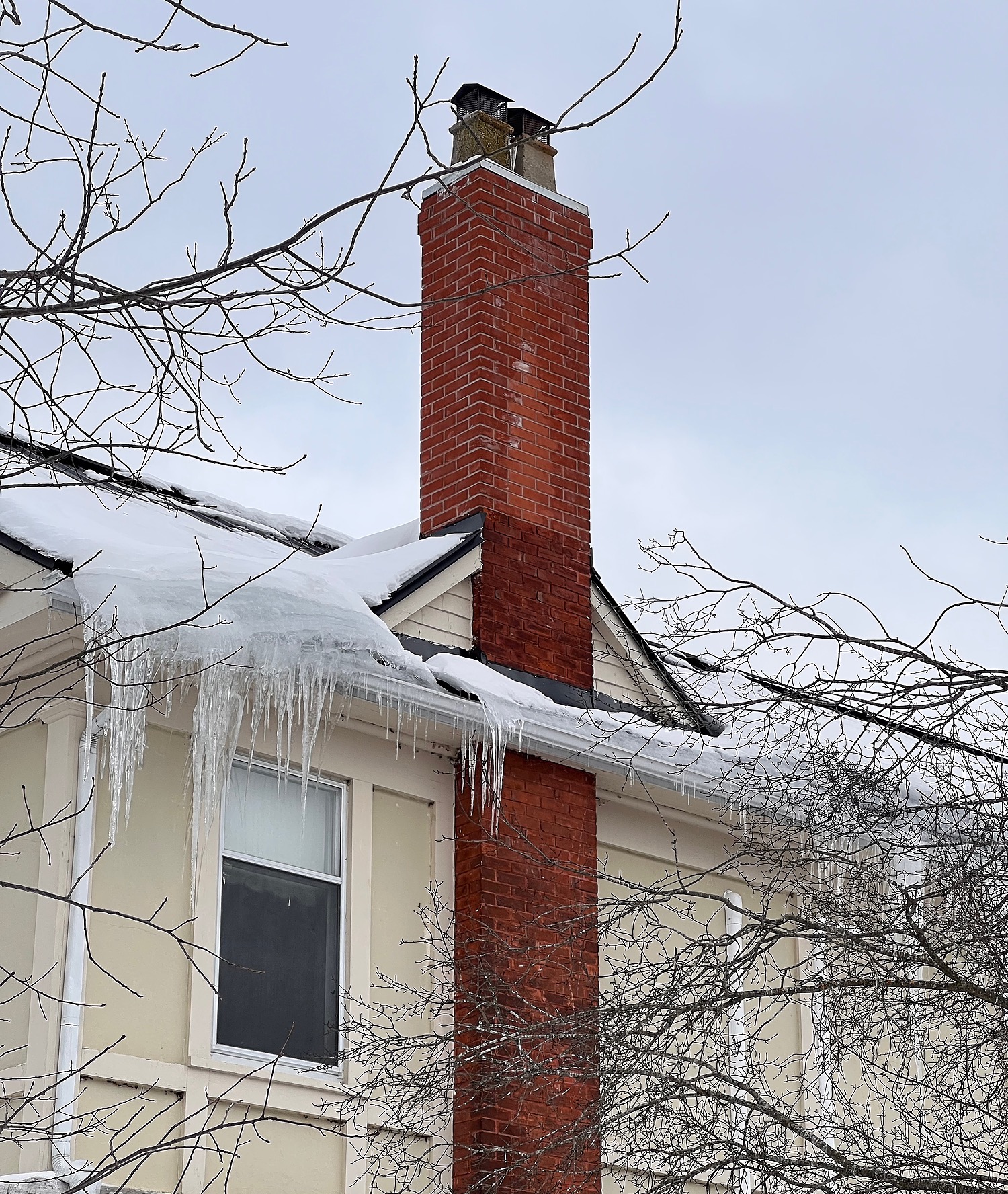

AIr leakage and poor insulation at roof and exterior wall junctions can create icicles and ice damming.
